Automatic Changeover Switch: Working Principle and Components Explained

Electric power is an essential part of our daily lives, but power interruptions are still common. In homes, offices, and industries, it is important to maintain a continuous supply of electricity to avoid downtime, losses, or inconvenience. This is where an Automatic Changeover Switch (ATS) comes in.

An Automatic Changeover Switch automatically transfers the load (such as household wiring or industrial machines) from the main power supply (utility grid) to an alternative source (such as a generator, inverter, or solar system) when the main supply fails. Once the main supply is restored, the ATS switches back automatically.

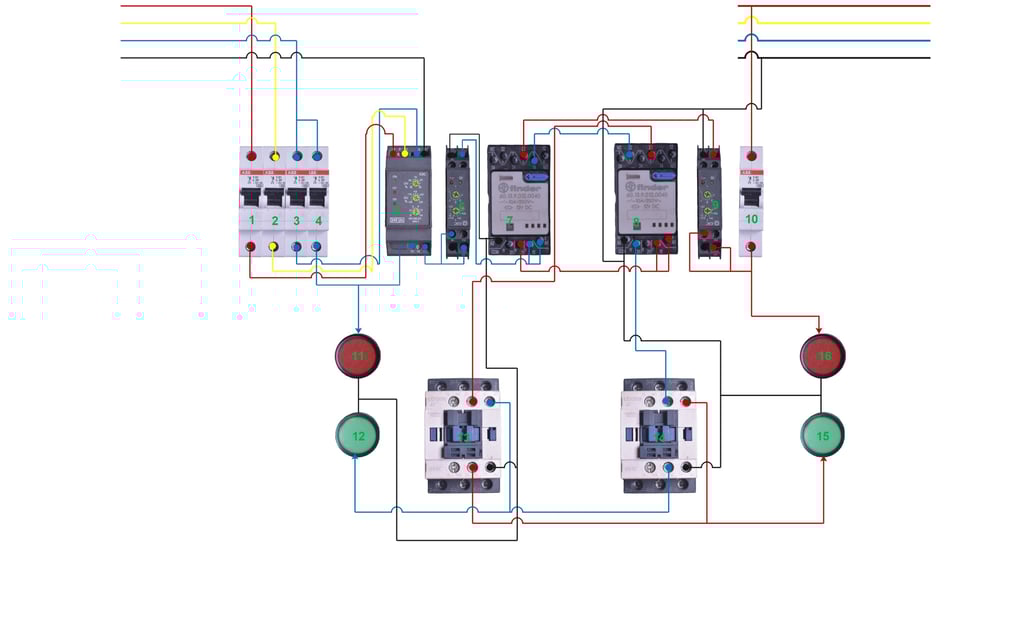

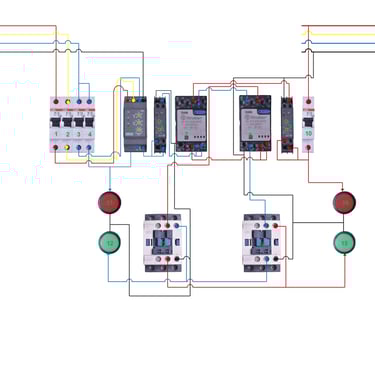

How an Automatic Changeover Switch Works

1. Normal Condition: When the utility power is available, the ATS keeps the load connected to it.

2. Power Failure: If the utility power goes off, the ATS immediately detects this.

3. Backup Source Activation: The ATS starts the backup generator (if available) or connects to another power source.

4. Load Transfer: Once the backup source is stable, the ATS shifts the load to it.

5. Restoration: When the utility power returns, the ATS shifts the load back and turns off the backup generator.

This entire process is automatic, requiring no human intervention.

Components of an Automatic Changeover Switch

An ATS is made up of several important parts. Each plays a specific role in ensuring smooth and safe transfer of power.

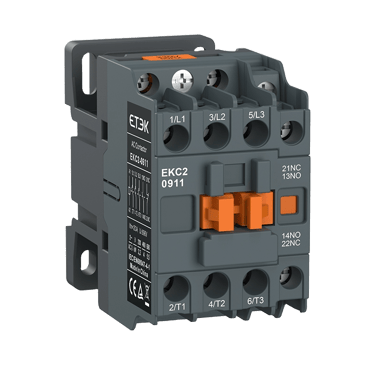

1. Power Contactor / Switching Device

• Function: This is the heart of the changeover switch. It physically connects and disconnects the load from one source to another.

• Explanation: It is usually made up of two or more heavy-duty contactors, one connected to the utility and the other to the generator or inverter. Only one contactor works at a time to avoid back-feeding between sources.

2. Control Circuit

• Function: Acts like the “brain” of the ATS, making decisions on when to switch power sources.

• Explanation: It monitors the availability and quality of the power supply. If the main power fails, it sends signals to start the generator and switch the load.

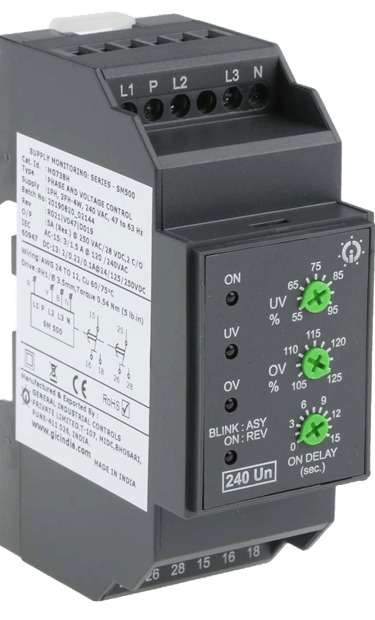

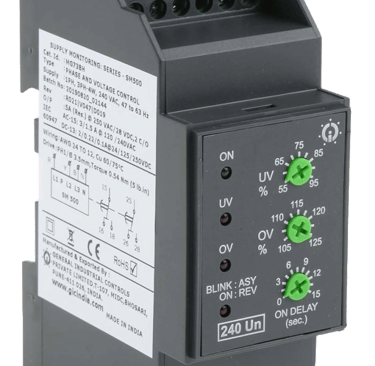

3. Sensing Units (Voltage & Frequency Sensors)

• Function: Detects the presence and quality of power supply from both the utility and backup source.

• Explanation: The ATS should not transfer load to a generator until it is running at the correct voltage and frequency. Similarly, it checks that the utility supply has stabilized before switching back.

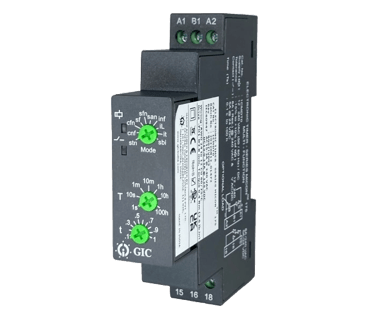

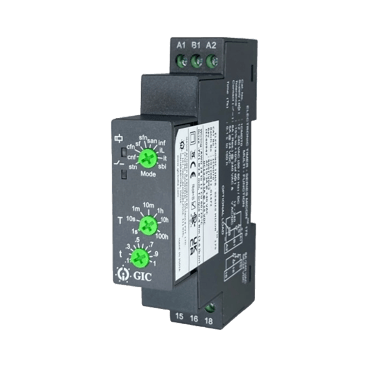

4. Timer (Delay Mechanism)

• Function: Prevents unnecessary or fast switching between power sources.

• Explanation: For example, if the grid power fails for just a second, the ATS should not immediately start the generator. A timer introduces a delay to confirm the failure before taking action. Similarly, when power is restored, it waits a few seconds before switching back to avoid fluctuations.

5. Generator Start/Stop Circuit

• Function: Automatically starts the generator when the main supply fails, and stops it when power is restored.

• Explanation: This circuit saves the operator from manually turning the generator on and off every time there’s a power outage.

6. Mechanical or Electrical Interlocks

• Function: Ensures that both power sources are never connected at the same time.

• Explanation: If both were connected together, it could damage the generator, appliances, or even cause fire. The interlock mechanism guarantees safe operation.

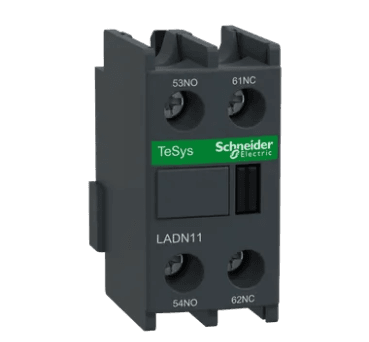

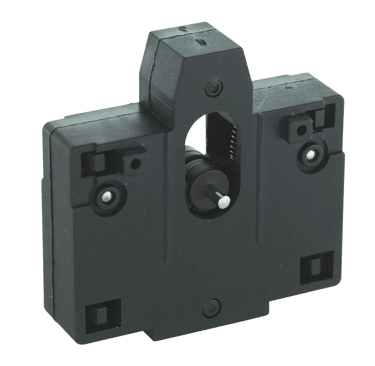

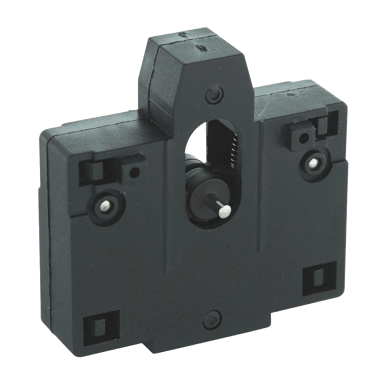

Mechanical interlock

Electrical interlock

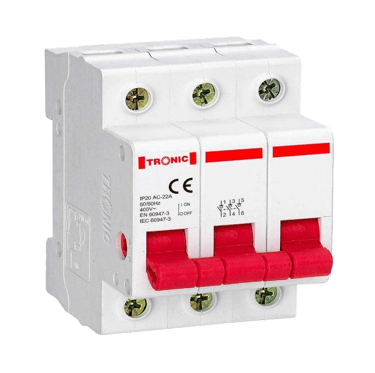

7. Circuit Breakers or Fuses

• Function: Protect against overloads and short circuits.

• Explanation: Each source (utility and generator) usually has a breaker or fuse to ensure that if there is a fault, it does not damage the ATS or connected equipment.

Advantages of Using an Automatic Changeover Switch

• Ensures an uninterrupted power supply.

• Saves time and effort compared to manual switching.

• Protects appliances and machinery from sudden outages.

• Enhances safety by preventing back-feeding.

• Can be integrated with generators, inverters, or solar power systems.

  An Automatic Changeover Switch is a vital system for homes, businesses, and industries where continuous power is necessary. By combining power contactors, control circuits, sensing units, timers, and safety devices, the ATS ensures a smooth and reliable transition between the main supply and backup power sources.

  Understanding its components and functions helps in using it effectively and in troubleshooting and maintenance.
